PolyWorks|Inspector is a powerful industrial 3D metrology software solution to control tool or part dimensions, diagnose and prevent manufacturing and assembly issues, guide assembly building through real-time measurements, and oversee the quality of assembled products
Highlights
PolyWorks|Inspector offers a broad range of part alignment techniques that let users construct alignments with : Surfaces or cross-sections, Features, Ref points & lines and Virtual gauges.
MEASURE – Extract all required dimensionsAt the core of the PolyWorks|Inspector workflow is the extraction of measured part dimensions and computing the deviations to their corresponding nominal dimensions. Thanks to the remarkable flexibility integrated into PolyWorks, dimensions can be extracted from measured point clouds, polygonal models built from point clouds, or probed points. Nominal dimensions can also be extracted from a CAD model or a reference measured part.

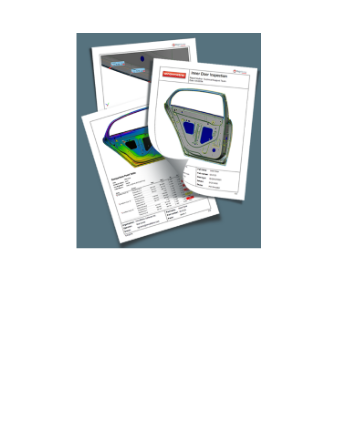

PolyWorks|Inspector provides an outstanding updateable reporting technology that guarantees the exactness of a report and dramatically accelerates multipiece inspection. Report items, such as 3D scene screenshots and result tables, are automatically updated if a project is altered. You can modify the parameters of a project, or replace the measured data points of the current piece by the data points from a new piece, knowing that the entire inspection report will automatically be updated.
DirectReplay™ – Simplify the inspection of multiple piecesPreparing an inspection project for a multi-piece inspection task has never been this easy. With DirectReplay™, PolyWorks|Inspector literally does the work for you. Thanks to the relational inspection architecture of PolyWorks|Inspector, zero teaching is now a reality.
