The SURVEYOR® ZS-Series 3D Laser Scanning Systems

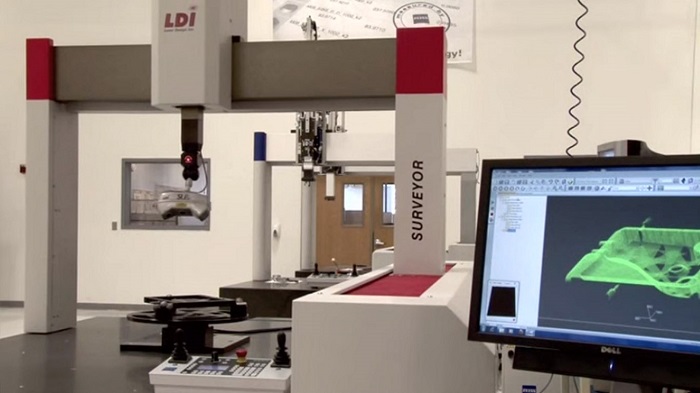

Known as the world leader in accuracy, these CMM’s are integrated with Laser Design’s fast and ultra-precise laser scanners for systems with the best of all technologies The ZS-Series sets a new standard for precision and ease of use in 3D measurement. Operators can quickly and easily scan simple prismatic shapes and geometry, free-form surfaces, or complex-shaped objects for inspection, analysis, or reverse engineering applications. Parts such as plastics, metal, rubber, cast, molded, forged, machined, or extruded components, as well as tooling, dies, or molds, are all typically measured items. Using its patented laser line scanning technology, Surveyor ZS-Series scans parts from all orientations, and then easily rotates the data back into a common coordinate system thus dramatically reduces scanning time and data collection. The digitized data can be processed further with LDI’ solution partner software part checking against CAD, dimensional inspection, GD&T measurement, reverse engineering and inspection.


3D Scanner with Highest Precision Standards

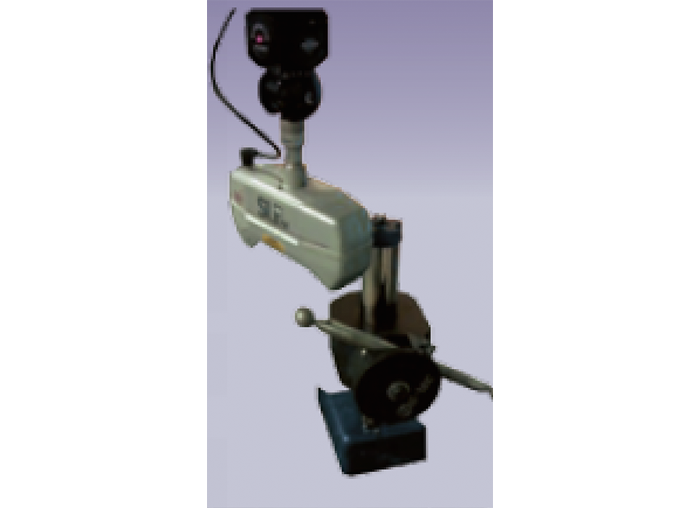

Laboratory tests show overall system accuracy on a ZS-2030 with PH10M and SLP250 to be 0.00898mm when performing an ANSI B89 ballbar test.

Highly Automated and Easy to Use

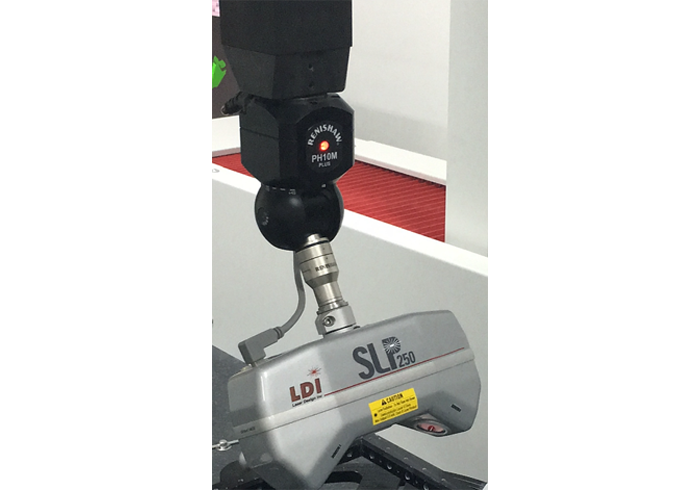

The Renishaw PH10 motorized indexing head and high-precision rotary stage options enable unattended automated scanning operation and repeatable probe reorientation.

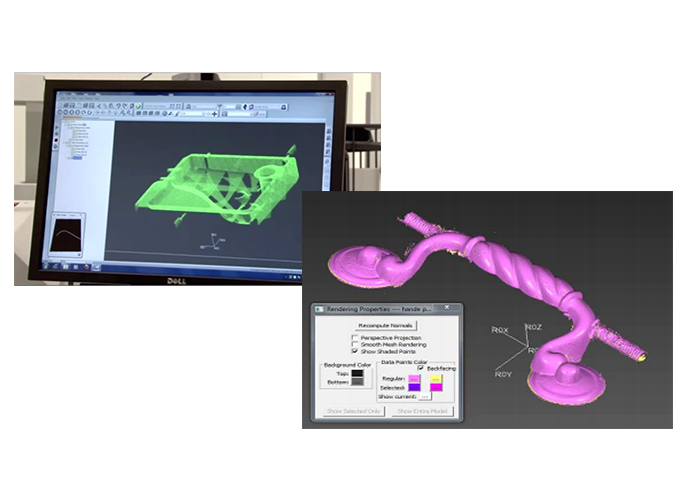

Surveyor Scan Control Proprietary software

• Provides optimization for part specularity, data density control, and filtering.
• Simple Windows interface that makes laser scanning easy.
• Easy to use scanning wizards automate most day-to-day tasks.
• Detailed accuracy reporting - Know the accuracy of your machine before you start collecting data.
• Automated scanning - Control up to 7 axis of motion for complete coverage from a single program.

Standard Control Panel for Motorized Control

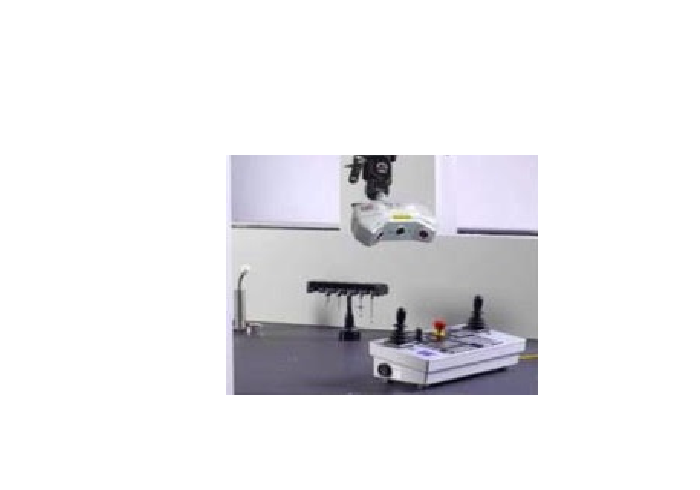

Dual joystick panel with LCD display and keypad for better usability and improved mechanical deflection features.

Fast and Ultra-Precise Laser Scanners

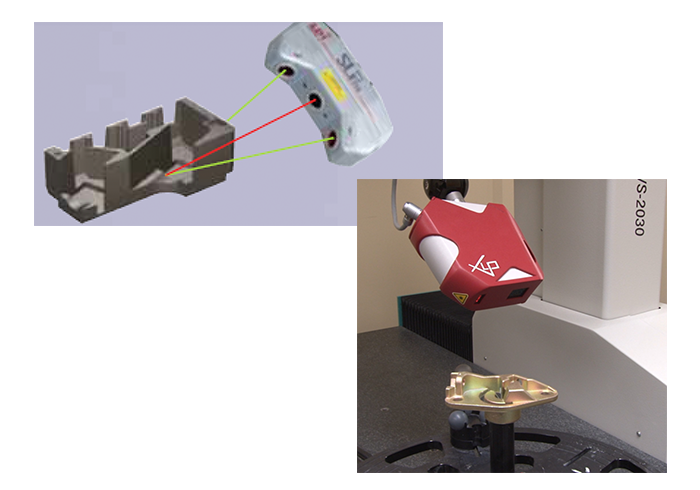

• Using Patented Laser Line Scanning Technology, it scans parts from all orientations, and then easily rotates the data back into a common coordinate system.
• Dual-camera sensors that collect data simultaneously.

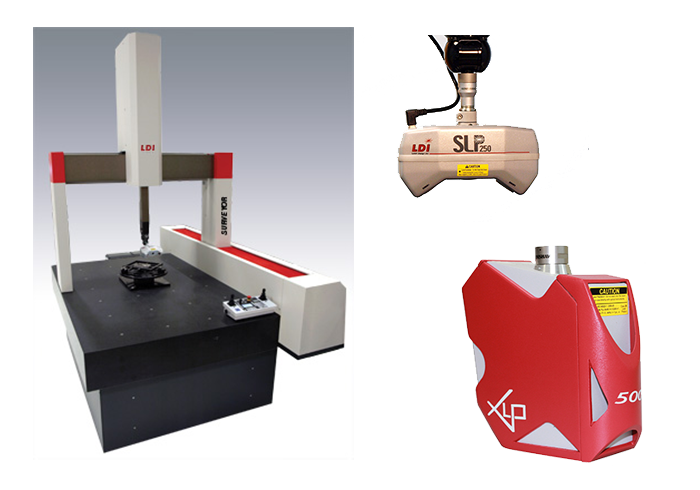

• Laser Design XLP laser probe is industry best accuracy, resolution and speed for laser line scanning technology.

Multiple Applications

• Systems are available in many sizes to accommodate different types of parts and applications.
• Laser probe options are also available for different part sizes and level of detail on the parts to be scanned.
